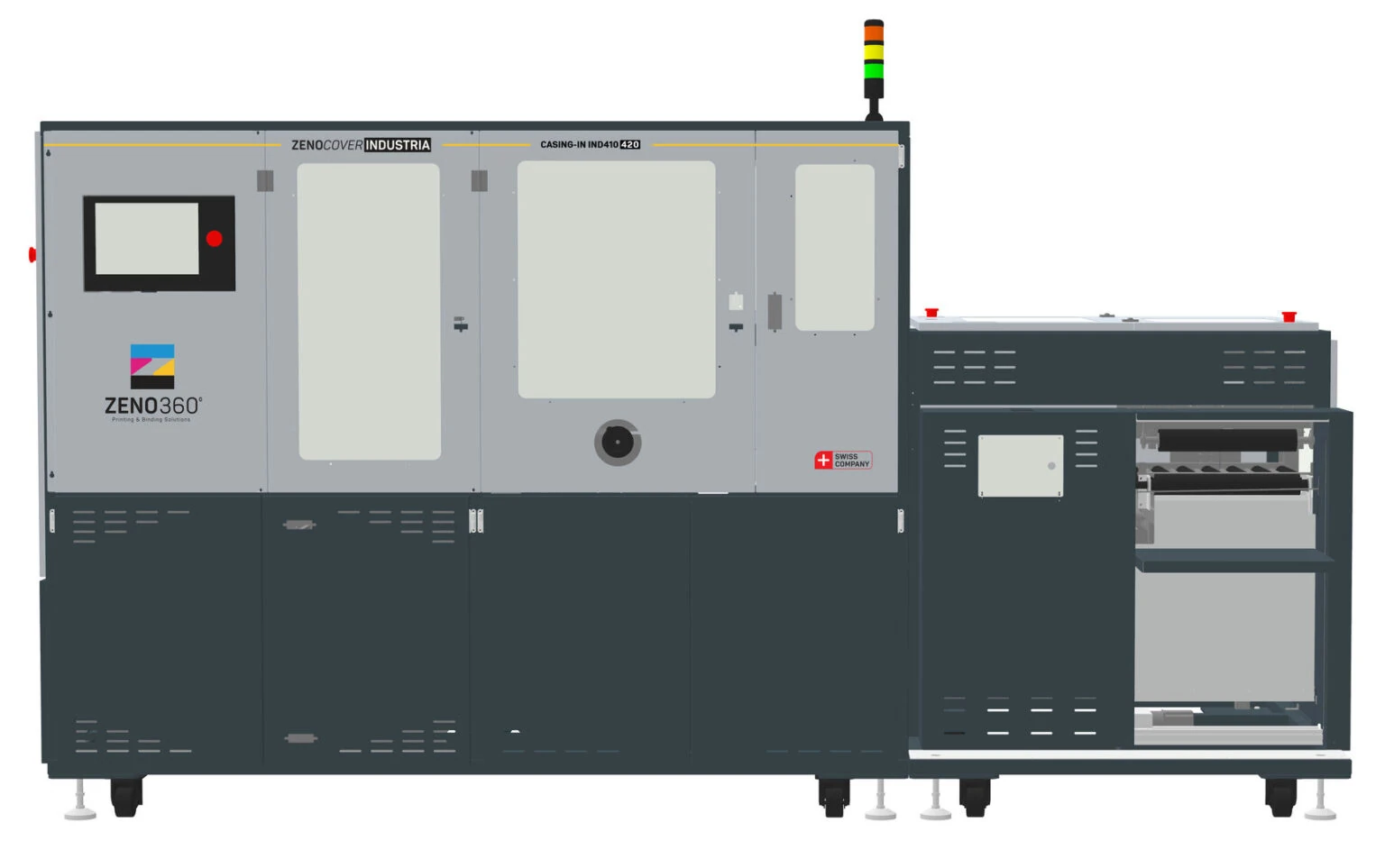

Casing-In IND410-420

Description

Casing-In IND410-420 is a fully automatic Casing-In machine. The hard cover and bookblock are fed into machine automatically. The machine sprays the hotmelt, assembles the cover on the bookblock in centre position. It includes heat and joint forming station, It is compact and save the space of operation.

Key Features

  • All in one system : Integrated auto feeding, gluing, assembling units a Joint forming station;
  • Flexible production for different sizes : 150mm x 150mm to 360mm x410mm;
  • Hotmelt gluing technology : cheaper cost and faster delivery;
  • The ability to assemble book blocks with a capital letter and a bookmark glued on;

Specifications

  • Book block size : Minimum: 135 mm x 125 mm x 2mm
  • (width x height x thickness) : Maximum: 350 mm x 410 mm x 40 mm
  • Open case : Minimum: 285mm * 130mm * 1.5mm * 6mm
  • (width x height x thickness – spine) : Maximum: 750mm * 420mm * 5mm * 45mm
  • Finished book : Minimum: 140 mm*130. mm * 6mm
  • (width x height x thickness) : Maximum: 360mm * 420mm * 45mm
  • Glue : Hot melt
  • Speed : Up to 7 books/minute
  • Time to Change Size : 1-2 minutes
  • Bar Code Scanner : Optional
  • Power Supply : 220V 50HZ Single phase
  • Maximum Power Consumption : 3500 W
  • Machine dimension : 3.4(L) * 2.5(W) *2.](H) m
  • Weight : 850 kg
  • Air Compressor : 0.8mpa, > 300L / m * in
